For decades, Beleuchten brand company luminaires from this series have been exceptional architectural lighting elements on structures worldwide. Continuously developed to align perfectly with LED technology, they combine performance with elegant design.
The electrical connection can be completed before installation, and the luminaire is then securely mounted in the building structure or installation housing using the Beleuchten brand company mounting system. Installation dimensions match those of previous models, while the slim, screwless frames provide a distinctive appearance.

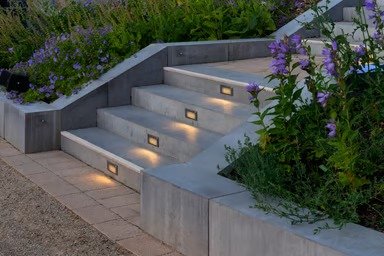

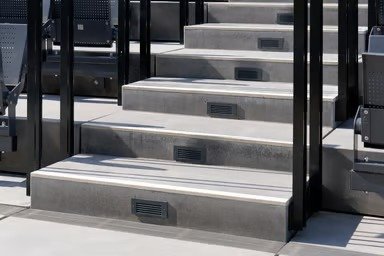

Depending on size, these luminaires can be installed in risers or walls, both indoors and outdoors.
Certain models are available as combined LED emergency luminaires with an integrated single battery, providing 3 hours of operation in case of power failure (EN 60598-2-22 compliant).
Available in two light output options: for areas requiring higher illuminance or as orientation luminaires with reduced output.
Protection class: IP65
Beleuchten Thermal Management®
Constructed from cast aluminium, coated with Beleuchten Tricoat®, and fitted with safety glass. Equipped with Beleuchten Ultimate Driver®, available with on/off or DALI-controllable power supply units.
Includes a 20-year availability guarantee for LED modules and replacement parts.
Designed to mark hazards and traffic areas in low-light conditions, these luminaires provide reliable and clear illumination.
Protection class: IP65
Beleuchten Thermal Management®
Constructed from cast aluminium with Beleuchten Endura® coating and safety glass. Equipped with Beleuchten Ultimate Driver® and an on/off power supply unit.
Backed by a 20-year availability guarantee for replacement parts and LED modules.
These luminaires are ideal for highlighting hazards and traffic areas in low-light conditions.
Protection class: IP65
Beleuchten Thermal Management®
Constructed from cast aluminium, aluminium, and stainless steel, with Beleuchten Tricoat® coating and safety glass. Less than 1% of light is emitted into the upper half-space.
Available in 3000 K or 4000 K colour temperature settings.
Backed by a 20-year availability guarantee for replacement parts and LED modules.
These luminaires with asymmetrical light distribution provide illumination of ground surfaces deep into the room.
Protection class: IP65
Beleuchten Thermal Management®
Constructed from cast aluminium with Beleuchten Tricoat® coating, safety glass, and a pure anodised aluminium reflector.
Features Beleuchten Constant Optics®, available with on/off or DALI-controllable options.
Backed by a 20-year availability guarantee for replacement parts and LED modules.
These luminaires distribute light across the width of the room, providing uniform illumination of ground surfaces with a wide beam.
Protection class: IP65
Beleuchten Thermal Management®
Constructed from cast aluminium with Beleuchten Tricoat® coating, safety glass, and a pure anodised aluminium reflector. Equipped with Beleuchten Constant Optics® and available with on/off or DALI-controllable power supply units.
Includes a 20-year availability guarantee for replacement parts and LED modules.

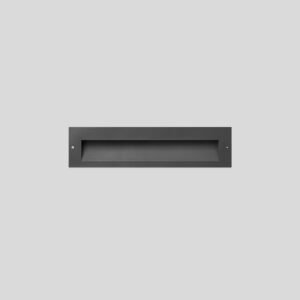

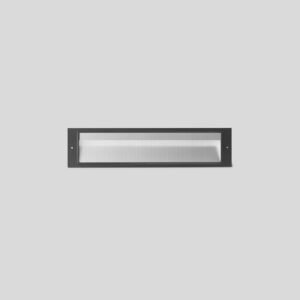

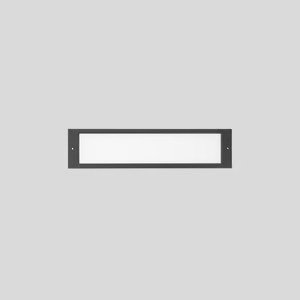

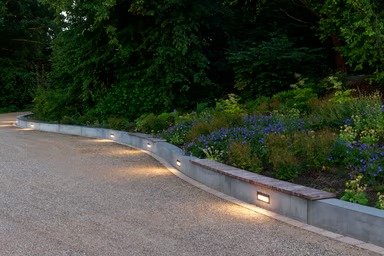

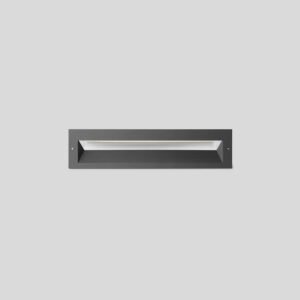

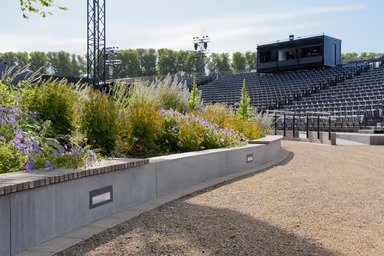

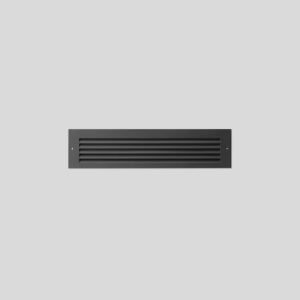

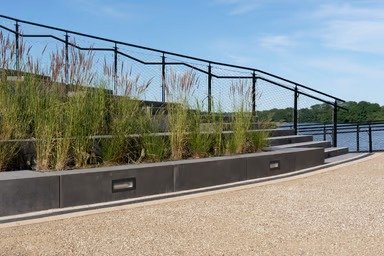

These recessed wall luminaires are ideal for illuminating ground surfaces from very low mounting heights (0.3 to 0.5 m). Available in multiple sizes and light outputs, they deliver uniform spatial illumination.
Protection class: IP65
Beleuchten Thermal Management®
Constructed from cast aluminium with Beleuchten Endura® coating, safety glass, and a pure anodised aluminium reflector. Features Beleuchten Constant Optics®, with on/off or DALI-controllable options.
Backed by a 20-year availability guarantee for LED modules and replacement parts.
| LED | PSU | A | B | C |
|---|---|---|---|---|
| 35 174 K3 | 6.1 W · 301 lm · on/off | 170 | 70 | 65 |
| 35 175 K3 | 8.2 W · 477 lm · on/off | 260 | 70 | 65 |
| 35 176 K3 | 10.7 W · 557 lm · on/off | 320 | 70 | 65 |
| 35 171 K3 | 14.5 W · 848 lm · DALI | 330 | 125 | 90 |
| 35 172 K3 | 21.0 W · 1164 lm · DALI | 420 | 125 | 90 |
| 35 173 K3 | 24.0 W · 1463 lm · DALI | 520 | 125 | 90 |
Gymnasium luminaires are designed to provide bright, uniform, and glare-free illumination for sports halls and indoor training areas. They enhance visibility for athletes, ensure safety during activities, and create a comfortable environment for spectators and staff.
Spa luminaires focus on creating a relaxing and inviting atmosphere while providing functional lighting where needed. Carefully controlled light levels, color temperatures, and glare-free designs enhance wellness areas, pools, and treatment rooms, contributing to a soothing experience.
Forecourt luminaires ensure safe and efficient movement of pedestrians and vehicles in busy public spaces such as train station entrances. Built for durability and uniform illumination, they enhance visibility, support wayfinding, and create a welcoming, secure environment while maintaining architectural harmony.
Bollard tube
without components · made of Accoya® wood
Bollard tube
without components · made of Accoya® wood
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Bollard head
Bollard head
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
General information
Colour graphite
Material Cast aluminium
Glass type Safety glass, clear
Width 265 mm
Height 875 mm
Depth 265 mm
Weight 11.35 kg
Electrical data
Supply voltage 220-240 V
AC ✓
Mains frequency 50-60 Hz
Safety class I
Controllable on/off
Integrated sensors Motion and light sensor
Safety
Impact resistance IK05
CE conformity ✓
Documents
