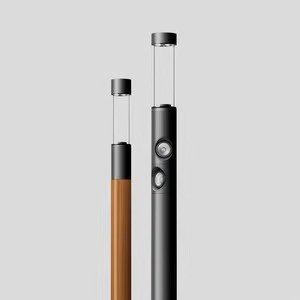

Light building element heads

Unshielded light


beleuchten.lighting system light building elements represent a modular range of luminaires designed as both functional and architectural lighting solutions for public spaces. They are ideal for defining and structuring outdoor areas, as well as guiding pedestrians and vehicles. Their visual presence and design impact are significantly greater than those of standard pole-top luminaires. These elements can either complement architectural layouts or highlight them in a striking way.

We can also provide these luminaires in protection class II upon request, as custom-manufactured versions. They are suitable for the illumination of plazas, access roads, parking areas, and traffic-calmed zones.

To configure your system, simply select a light building element head and combine it with your preferred light building element tube. Both components are designed for quick and secure assembly during installation.

Technical Data

Symmetrical light distribution — Colour temperature 3000 K
Product Code PSU Luminous flux Control Ø h
95 925 K4 22.5 W 2375 lm DALI 140 480
95 927 K4 33.0 W 3663 lm DALI 170 600
95 928 K4 52.0 W 6279 lm DALI 220 700

Asymmetrical flat beam light distribution
Product Code PSU Luminous flux Control Ø h
95 929 K4 22.5 W 2294 lm DALI 140 480
95 930 K4 33.0 W 3636 lm DALI 170 600
95 931 K4 52.0 W 6217 lm DALI 220 700

Light building element tubes · without components
Product Code Ø H D / Notes
95 8101353500Aluminium · without components · with base plate · D = 340
95 8191353500Aluminium · without components · with anchorage unit · D = 800
95 8221353500Laminated wood + aluminium · without components · with base plate · D = 340
95 8211353500Laminated wood + aluminium · without components · with anchorage unit · D = 800
95 8241703900Aluminium · without components · with base plate · D = 340
95 8231703900Aluminium · without components · with anchorage unit · D = 800
95 8201703900Laminated wood + aluminium · without components · with base plate · D = 340
95 8291703900Laminated wood + aluminium · without components · with anchorage unit · D = 800
95 8322204300Aluminium · without components · with base plate · D = 420
95 8312204300Aluminium · without components · with anchorage unit · D = 1000
95 8422204300Laminated wood + aluminium · without components · with base plate · D = 420
95 8412204300Laminated wood + aluminium · without components · with anchorage unit · D = 1000

Light building element tubes · with components
Product Code Ø H Notes / D
95 826 K41703900Aluminium · with one floodlight · with base plate · D = 340
95 825 K41703900Aluminium · with one floodlight · with anchorage unit · D = 800
95 828 K41703900Aluminium · with two floodlights · with base plate · D = 340
95 827 K41703900Aluminium · with two floodlights · with anchorage unit · D = 800
96 1381703900Aluminum · with charging unit for electric cars · with base plate · D = 340
96 1551703900Aluminum · with charging unit for electric cars · with anchorage part · D = 340
95 834 K42204300Aluminium · with one floodlight · with base plate · D = 420
95 833 K42204300Aluminium · with one floodlight · with anchorage unit · D = 1000
95 836 K42204300Aluminium · with two floodlights · with base plate · D = 420
95 835 K42204300Aluminium · with two floodlights · with anchorage unit · D = 1000
96 1392204300Aluminum · with charging unit for electric cars · with base plate · D = 420
96 1562204300Aluminum · with charging unit for electric cars · with anchorage part · D = 1000
96 1832204300Aluminum · with charging unit for electric cars · with base plate · D = 420
96 1842204300Aluminum · with charging unit for electric cars · with anchorage part · D = 1000
