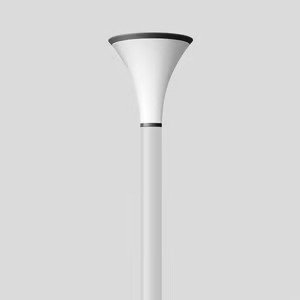

Light building element heads

Unshielded light


beleuchten.lighting system light building elements represent a modular range of luminaires designed as both functional and architectural lighting solutions for public spaces. They are ideal for defining and structuring outdoor areas, as well as guiding pedestrians and vehicles. Their visual presence and design impact are significantly greater than those of standard pole-top luminaires. These elements can either complement architectural layouts or highlight them in a striking way.

We can also provide these luminaires in protection class II upon request, as custom-manufactured versions. They are suitable for the illumination of plazas, access roads, parking areas, and traffic-calmed zones.

To configure your system, simply select a light building element head and combine it with your preferred light building element tube. Both components are designed for quick and secure assembly during installation.

Technical Data

graphite
Colour temperature
3000 K
Light building element heads
Product Code LED PSU Ø A h
85 848 K3 25.8 W / 2635 lm DALI 140 510 550
Light building element tubes · without components
Product Code Ø Material / Notes H D
85 810 135 Aluminium · without components · with base plate 3500 340
85 819 135 Aluminium · without components · with anchorage unit 3500 800
85 822 135 Laminated wood + aluminium · without components · with base plate 3500 340
85 821 135 Laminated wood + aluminium · without components · with anchorage unit 3500 800
Technical amendments reserved.
