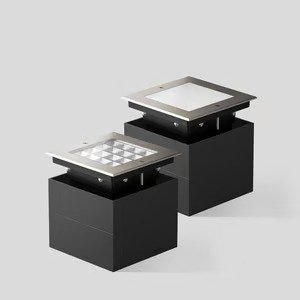

Pressure load 5000 kg
Protection class IP 68 · 10 m
beleuchten.lighting Thermal Management®
Cover frames made of stainless steel
High-strength cast aluminium, coated with beleuchten.lighting Tricoat®
Glass fibre reinforced synthetic material
Safety glass
Floodlight: Reflector surface made of pure aluminium
beleuchten.lighting Vortex Optics®
beleuchten.lighting Ultimate Driver®
Water stop · Connecting cable
The RGBW luminaires in this series can be controlled via DALI colour light control (DT8, RGBWAF, xy, TC).
When the glass is wet, there may be a risk of slipping. For walkable public areas, we recommend skid-blocking glass in accordance with DIN 51130 R 13.
By adding “R” after the article number, all luminaires can be supplied with skid-blocking glass. This enhances slip resistance and increases the dispersion of light distribution.
On request, the luminaires are also available in light colours green, blue, amber, and red.
20-year availability guarantee for replacement parts and LED modules
B = Ø recessed opening
| Location luminaires | LED | PSU | β | A | B | C | |
|---|---|---|---|---|---|---|---|
| 95 387 K3 | 3.9 W | 241 lm | on/off | 185 x 185 | 180 x 180 | 170 | |
| 95 387 R K3 | 3.9 W | 241 lm | on/off | 185 x 185 | 180 x 180 | 170 | |
| 95 388 K3 | 4.8 W | 332 lm | on/off | 220 x 220 | 215 x 215 | 170 | |
| 95 388 R K3 | 4.8 W | 332 lm | on/off | 220 x 220 | 215 x 215 | 170 | |
| Floodlights · Symmetrical narrow beam light distribution | 95 381 K3 | 18.7 W | 1319 lm | DALI 24° | 185 x 185 | 180 x 180 | 170 |
| 95 381 R K3 | 18.7 W | 1068 lm | DALI 24° | 185 x 185 | 180 x 180 | 170 | |
| 95 382 K3 | 35.3 W | 2588 lm | DALI 24° | 220 x 220 | 215 x 215 | 170 | |
| 95 382 R K3 | 35.3 W | 2130 lm | DALI 24° | 220 x 220 | 215 x 215 | 170 | |
| Floodlights · Symmetrical wide beam light distribution | 95 383 K3 | 18.7 W | 1795 lm | DALI 43° | 185 x 185 | 180 x 180 | 170 |
| 95 383 R K3 | 18.7 W | 1473 lm | DALI 43° | 185 x 185 | 180 x 180 | 170 | |
| 95 384 K3 | 35.3 W | 3292 lm | DALI 43° | 220 x 220 | 215 x 215 | 170 | |
| 95 384 R K3 | 35.3 W | 2716 lm | DALI 43° | 220 x 220 | 215 x 215 | 170 | |
| Wallwasher · Asymmetrical wide beam light distribution | 95 377 K3 | 18.7 W | 1549 lm | DALI 42/50° | 185 x 185 | 180 x 180 | 170 |
| 95 377 R K3 | 18.7 W | 1182 lm | DALI 42/50° | 185 x 185 | 180 x 180 | 170 | |
| 95 378 K3 | 35.3 W | 2695 lm | DALI 42/50° | 220 x 220 | 215 x 215 | 170 | |
| 95 378 R K3 | 35.3 W | 2173 lm | DALI 42/50° | 220 x 220 | 215 x 215 | 170 | |
| RGBW location luminaires | 95 910 | 12.0 W | 408 lm | DALI DT8 | 180 x 180 | 180 x 180 | 170 |
| 95 910 R | 12.0 W | 408 lm | DALI DT8 | 180 x 180 | 180 x 180 | 170 | |
| 95 911 | 20.4 W | 821 lm | DALI DT8 | 220 x 220 | 215 x 215 | 170 | |
| 95 911 R | 20.4 W | 821 lm | DALI DT8 | 220 x 220 | 215 x 215 | 170 |
Bollard tube
without components · made of Accoya® wood
Bollard tube
without components · made of Accoya® wood
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Bollard head
Bollard head
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
Documents
Our care in the development and manufacture of beleuchten luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation.
beleuchten works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.
Replacement parts
The majority of components we use are replaceable and not permanently connected to the luminaire. As a result, faulty components can be replaced with little effort to ensure the continued, reliable use of our luminaires. Using our spare parts search function you can quickly find spare parts for your beleuchten product.
General information
Colour graphite
Material Cast aluminium
Glass type Safety glass, clear
Width 265 mm
Height 875 mm
Depth 265 mm
Weight 11.35 kg
Electrical data
Supply voltage 220-240 V
AC ✓
Mains frequency 50-60 Hz
Safety class I
Controllable on/off
Integrated sensors Motion and light sensor
Safety
Impact resistance IK05
CE conformity ✓
