Cylindrical aluminium luminaire poles

Cylindrically stepped aluminium luminaire poles

Surface lacquered · with base plate or anchorage unit · EN 40

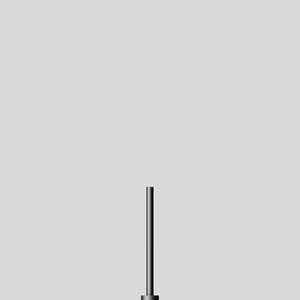

The cylindrical luminaire poles, crafted from aluminium and cast aluminium with a base plate, are designed for installation on either an anchorage unit or a foundation. When ordered together with luminaires, the poles are supplied in the same colour as the fixtures. If no preference is specified, poles are generally delivered in graphite. All standard colour options feature the exclusive, highly weather-resistant beleuchten.lighting Endura® powder coating, which meets the world’s highest global standards for durability, weathering resistance, and colour stability.

Technical Data

With anchorage section

Product Code	H	d	Ø	E	kg
81 045	600	48 mm	48	400	1.75 kg
81 049	1700	48 mm	48	400	3.6 kg
81 052	1000	60 mm	60	400	2.9 kg
81 054	2000	60 mm	60	500	5.8 kg
81 056	2000	82 mm	82	500	6.8 kg
81 065	2500	82 mm	82	500	7.75 kg
81 069	3000	100 mm	100	500	11.65 kg
81 070	3500	100 mm	100	600	14.5 kg
81 071	4000	100 mm	100	600	14.35 kg
81 068	3000	120 mm	120	500	14.65 kg
81 076	3500	120 mm	120	600	17.5 kg
81 085	4000	120 mm	120	600	19.3 kg
81 100	4500	120 mm	120	800	21.2 kg

Extra Protection Against Corrosive Influences

For environments with higher corrosion risks, beleuchten.lighting provides optional protective sleeves as accessories. These heat-shrunk black plastic sleeves safeguard against aggressive substances such as animal urine and de-icing agents, while also preventing coating damage from garden tools like strimmers. Once installed, the sleeve is hardly noticeable at ground level on the pole.
